Description

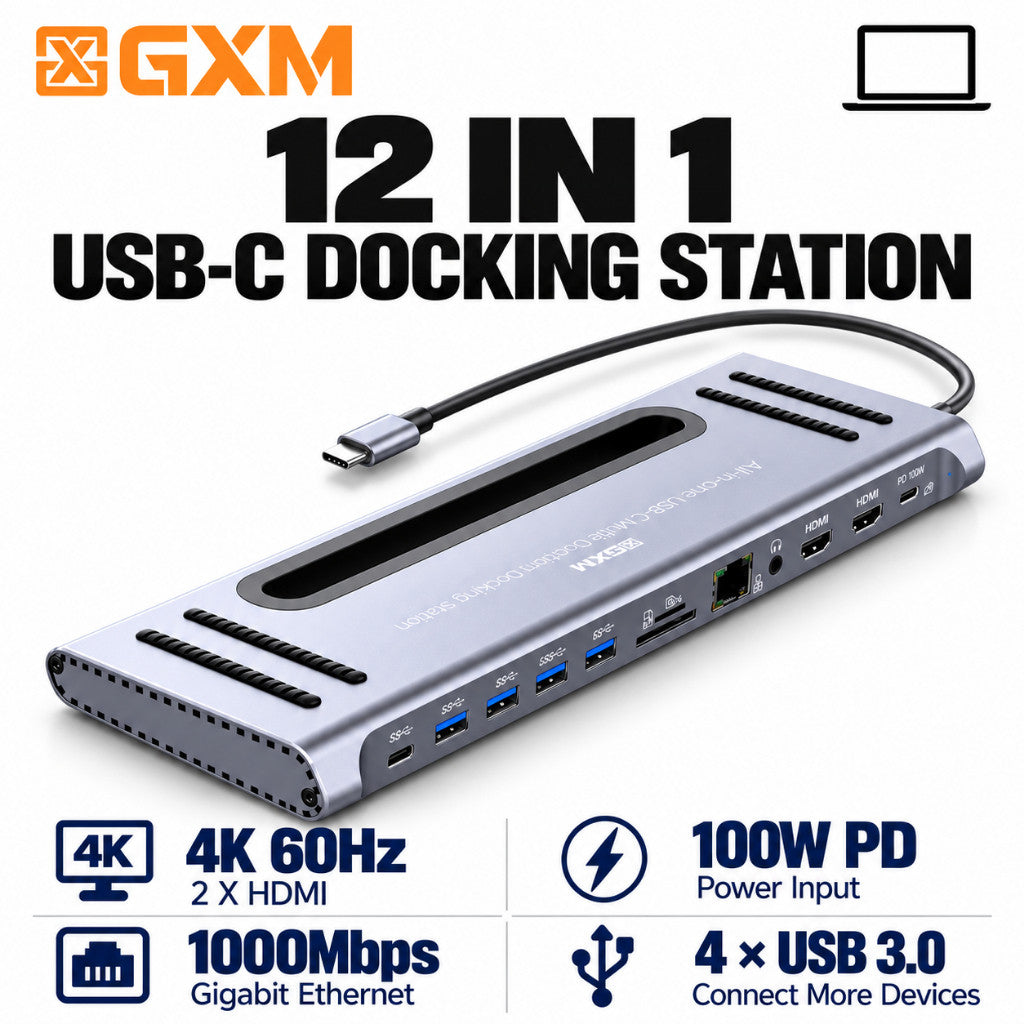

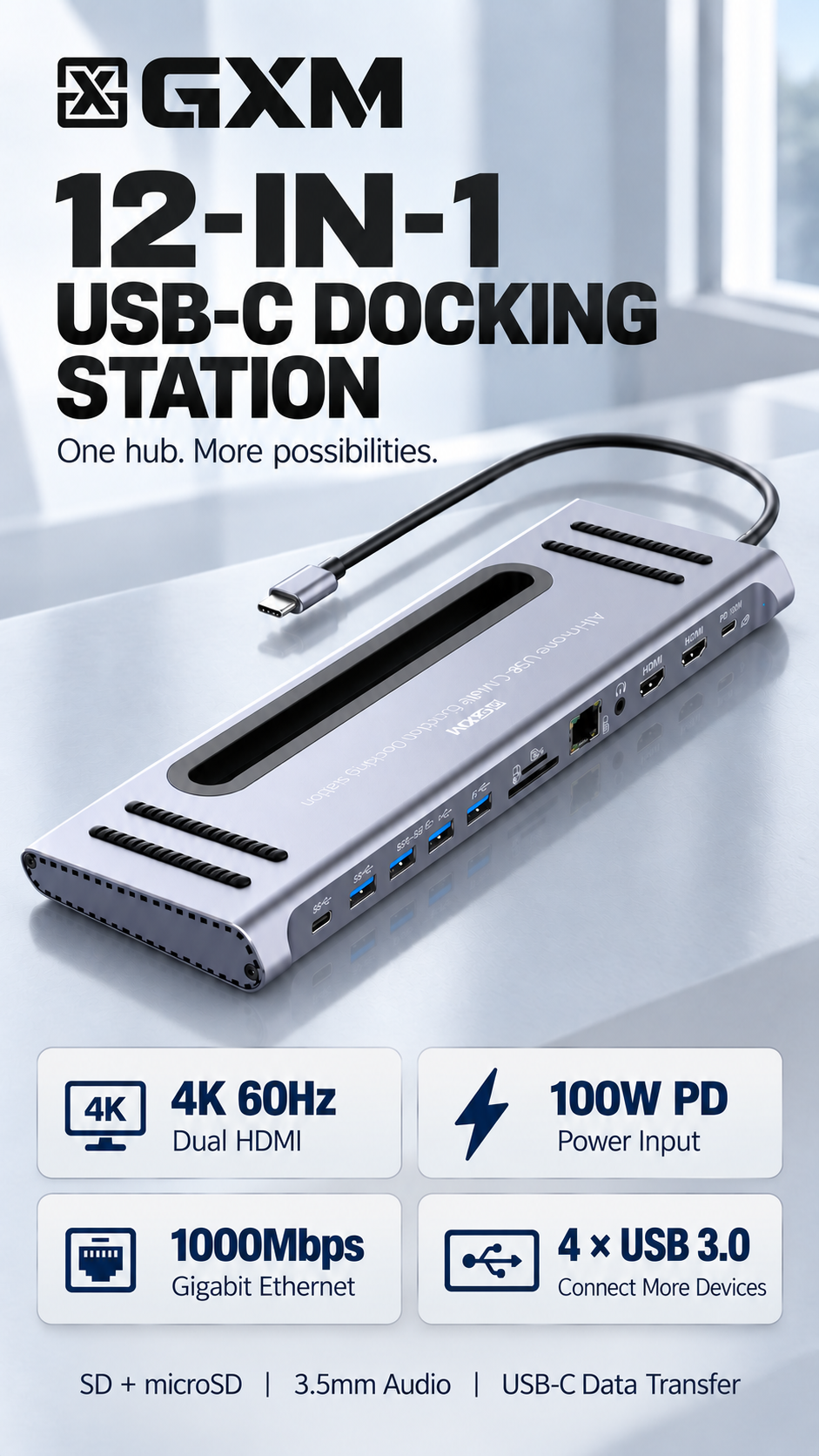

• 12-in-1 Expansion

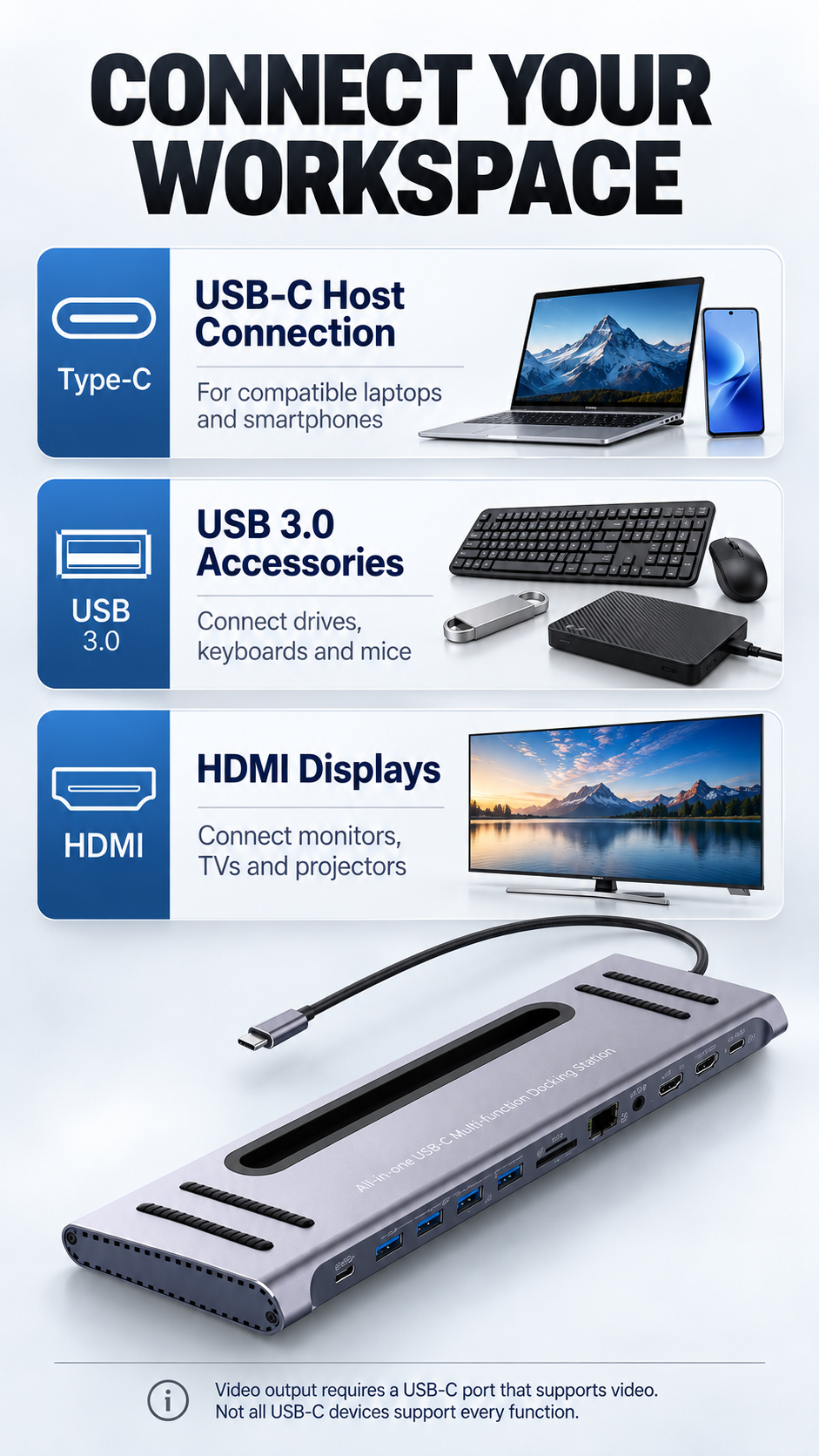

Connect displays, USB accessories, memory cards, wired internet and audio devices through one USB-C host connection.
• Dual HDMI Display Outputs
Supports up to 4K 60Hz with a single HDMI connection, or 4K 30Hz when using both HDMI outputs.

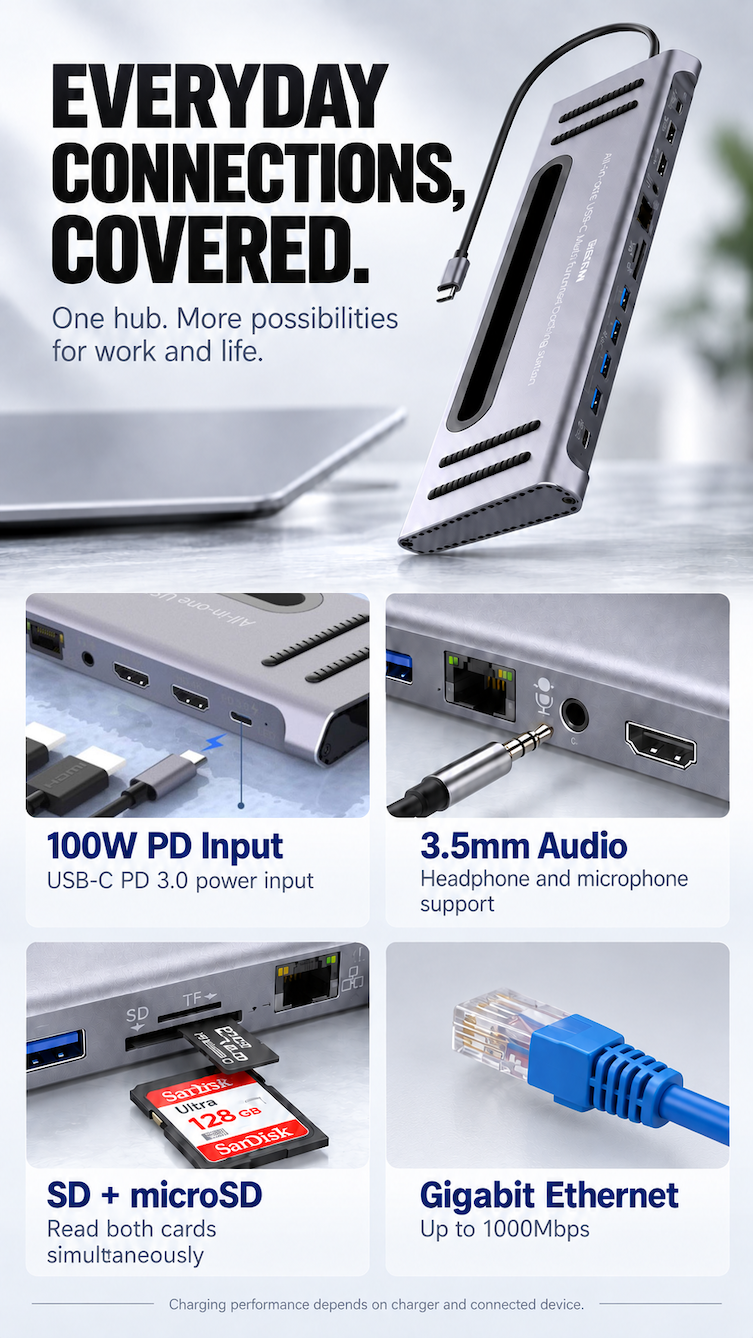

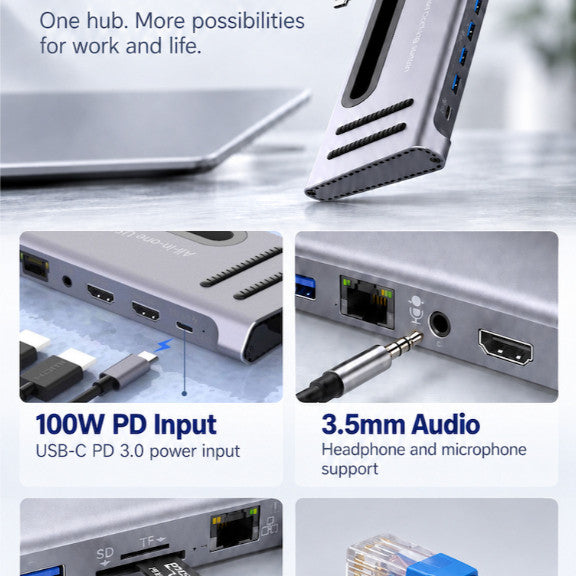

• Up to 100W PD Input
USB-C PD 3.0 power input supports pass-through charging. Actual charging power depends on your charger, device and the hub’s power consumption.
• 1000Mbps Gigabit Ethernet
Connect to a wired network through the RJ45 port. Actual speed depends on your network and equipment.

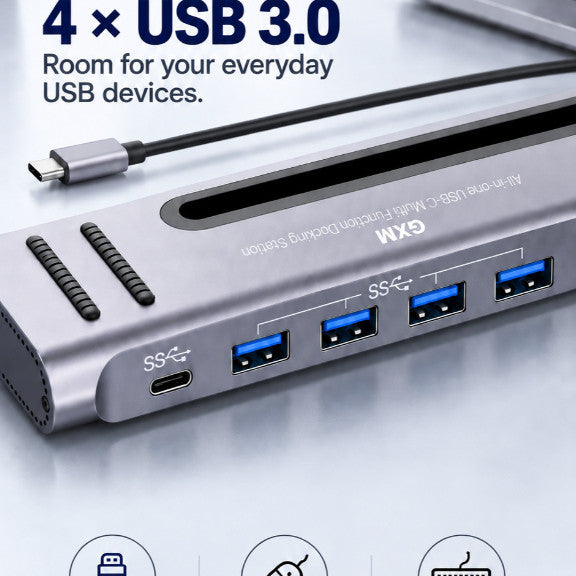

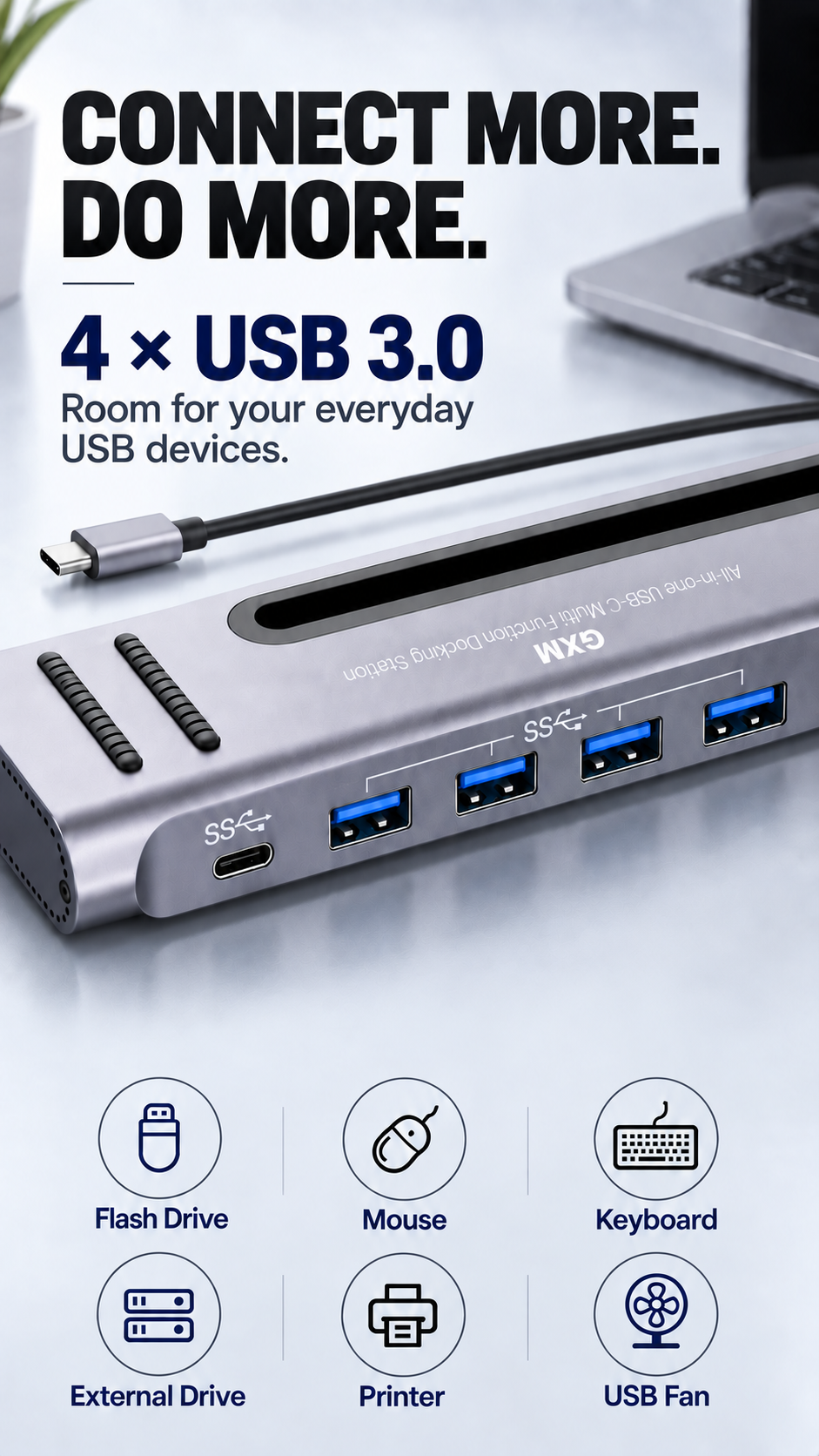

• 4 × USB 3.0 Ports
Connect flash drives, keyboards, mice and other compatible USB accessories.
• SD + microSD Card Readers
Access photos and files with support for simultaneous SD and microSD card reading.
• USB-C Data & 3.5mm Audio
A dedicated USB-C data port for compatible storage devices, plus a 3.5mm audio port with headphone and microphone support.

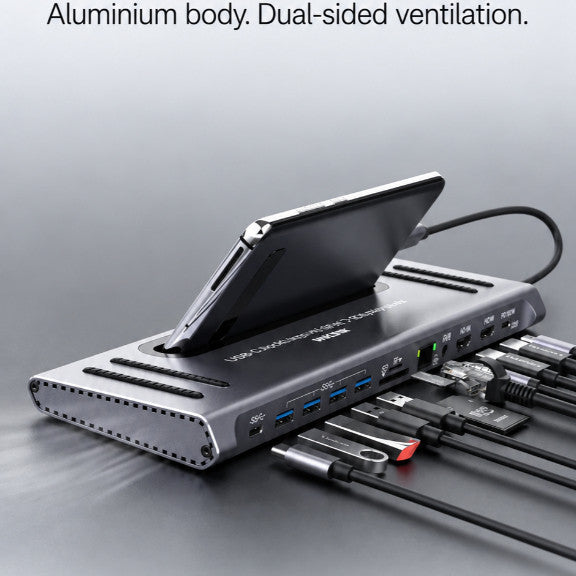

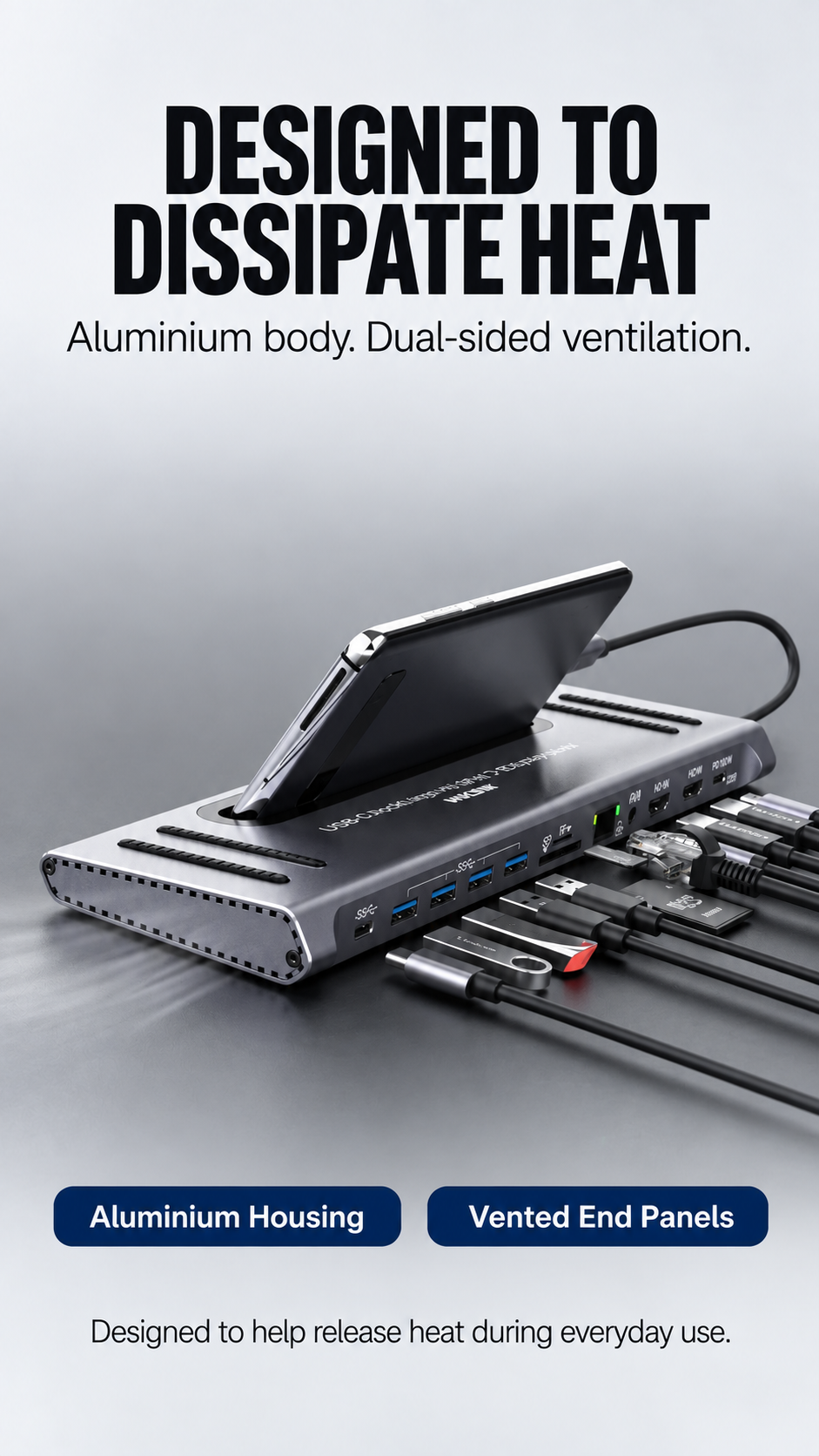

• Aluminium Housing
Space Grey aluminium body with vented end panels to help dissipate heat.

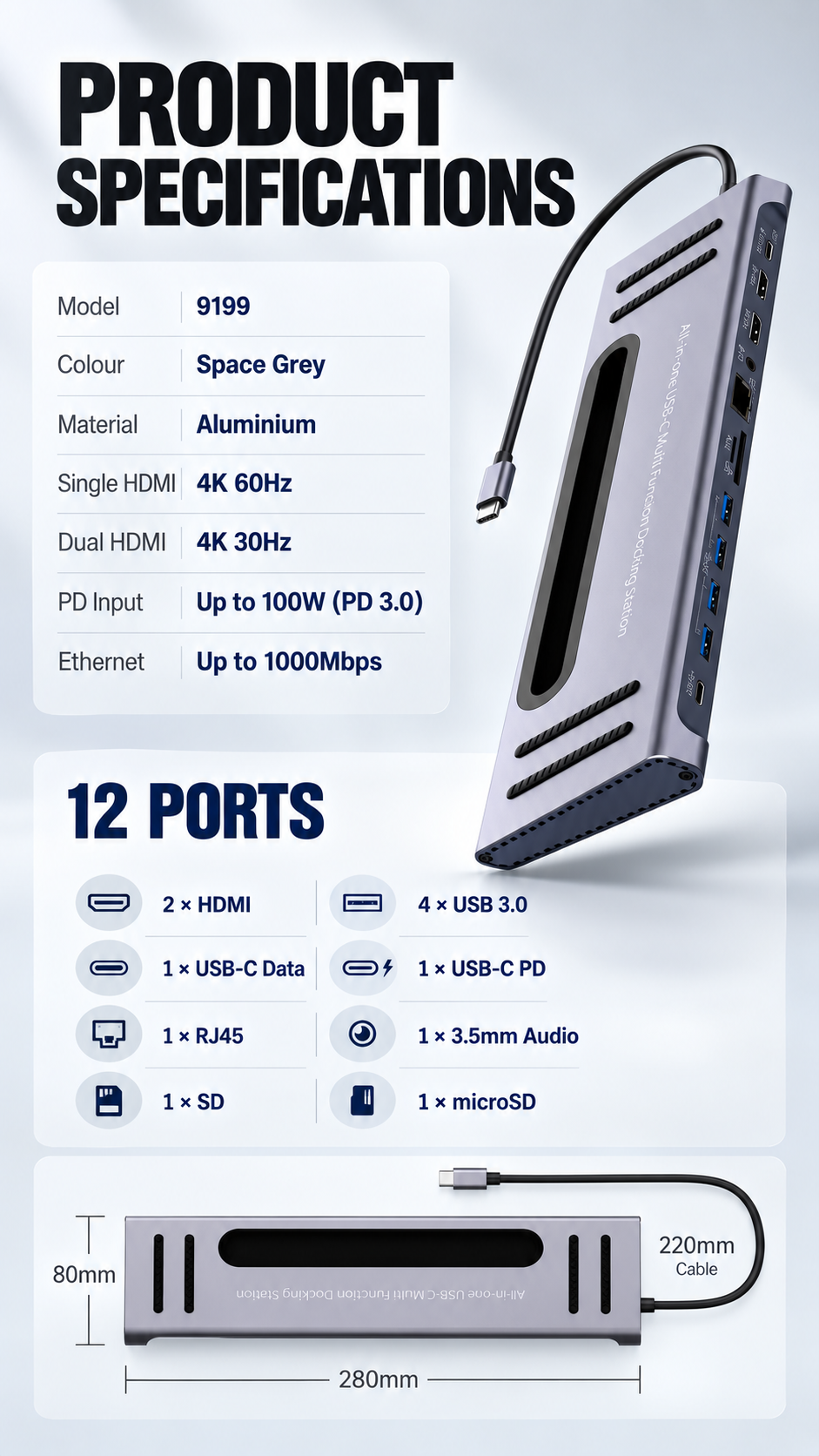

PRODUCT SPECIFICATIONS
Brand: GXM
Model: 9199

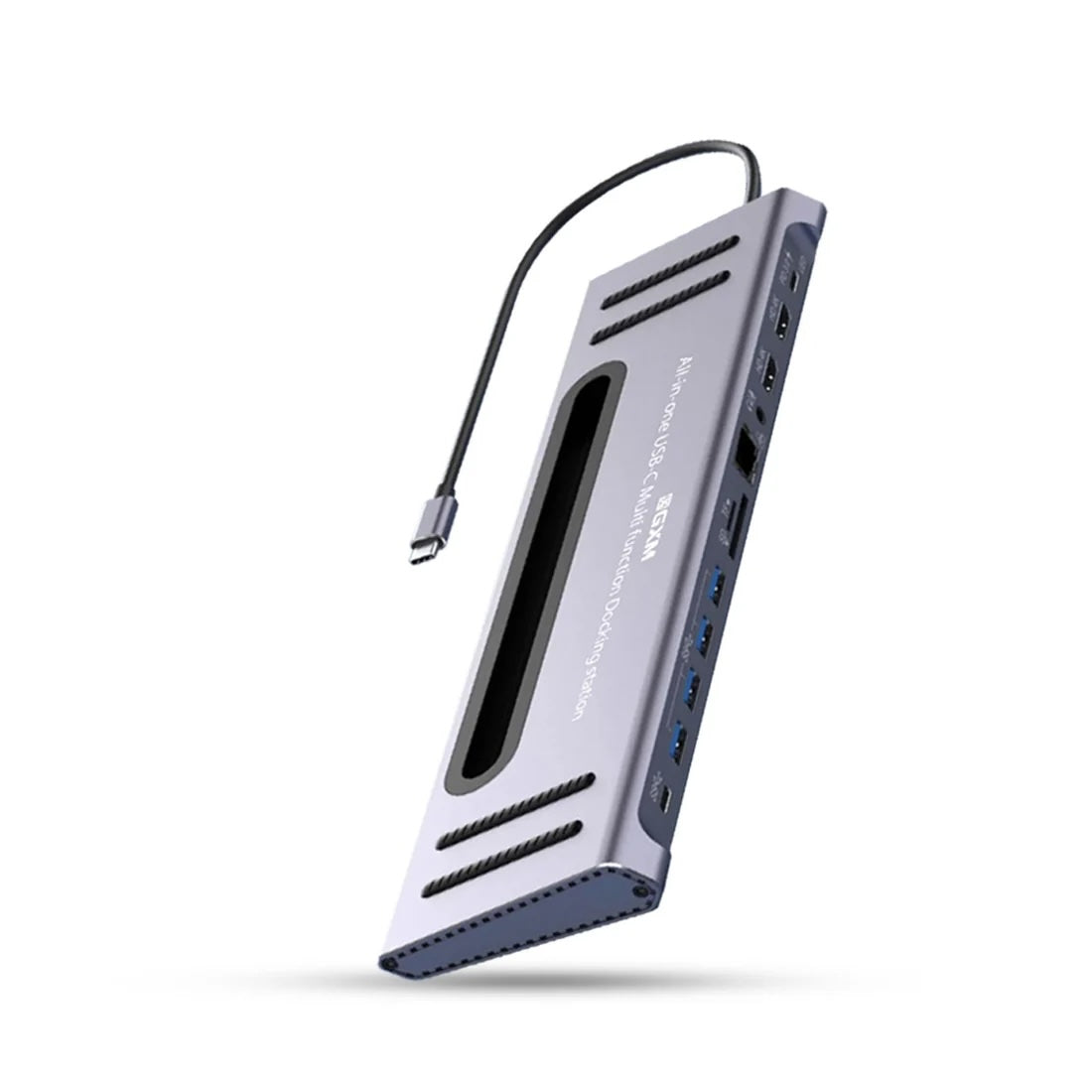

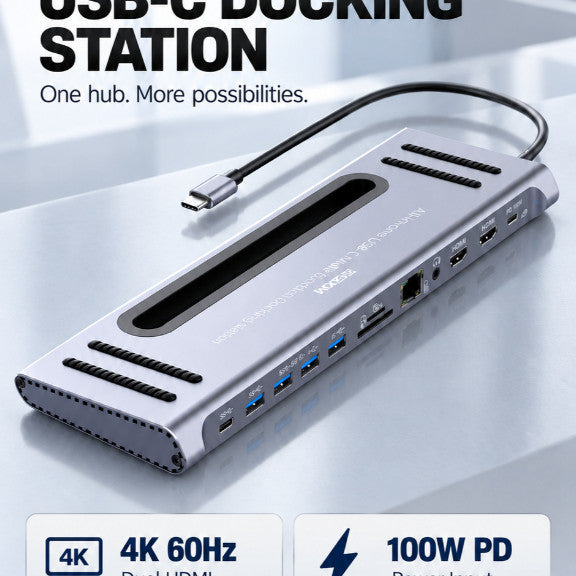

Product: 12-in-1 USB-C Docking Station
Colour: Space Grey
Material: Aluminium
Host Connection: Built-in USB-C cable
Dimensions: 280 × 80mm
Cable Length: 220mm

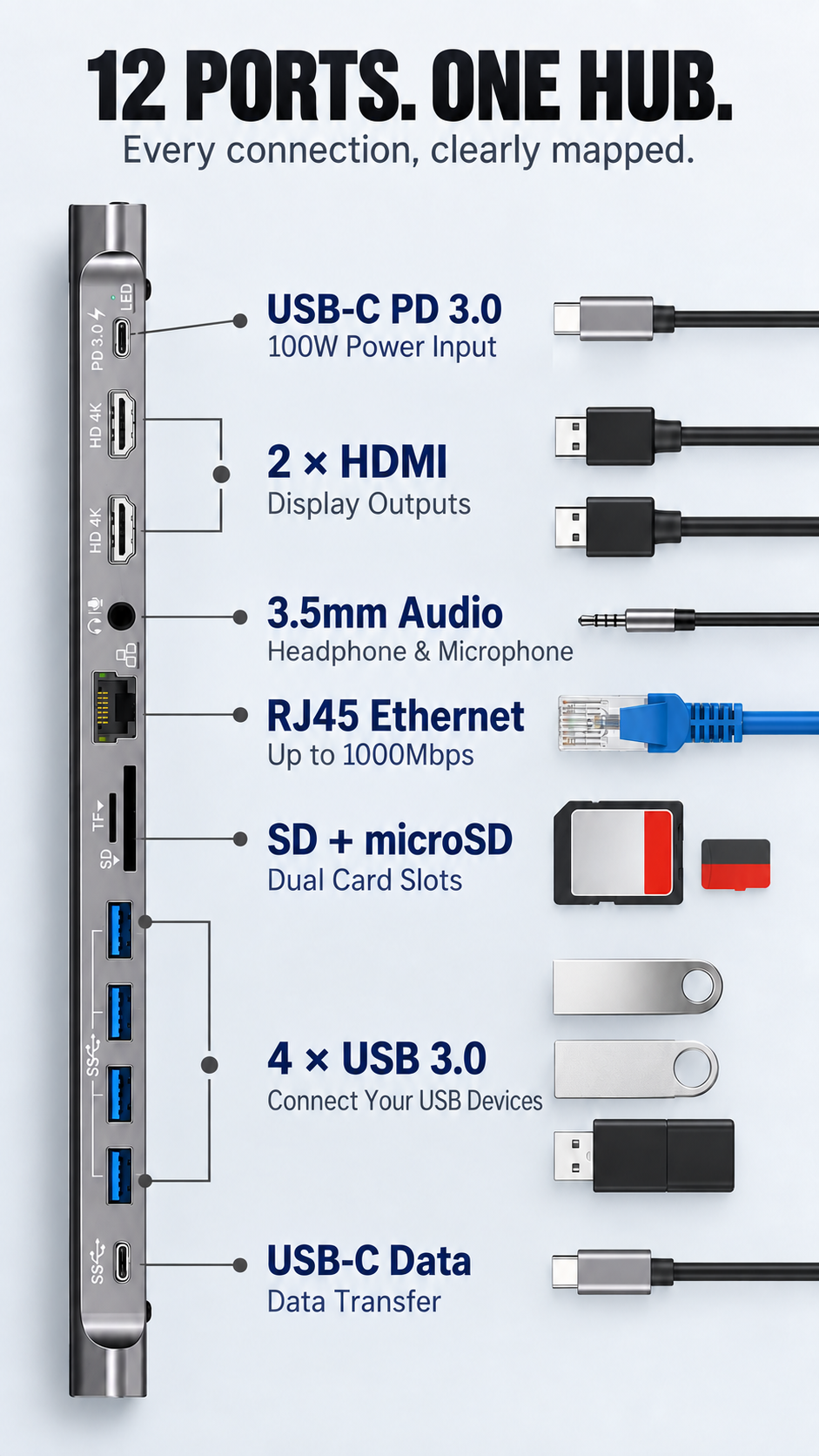

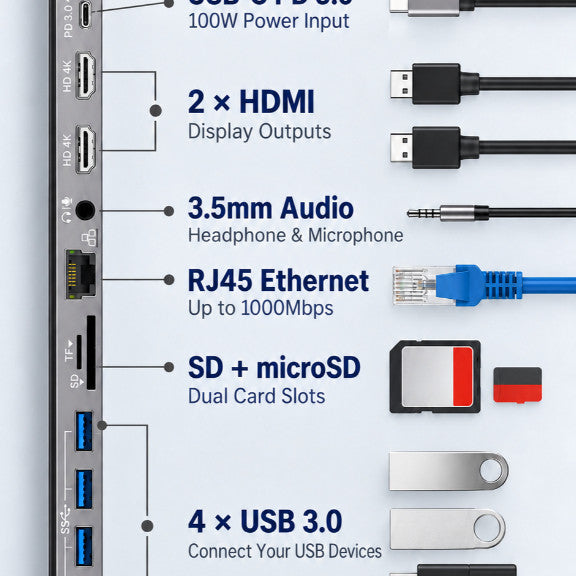

PORTS
2 × HDMI
4 × USB-A 3.0
1 × USB-C Data
1 × USB-C PD 3.0 Input
1 × RJ45 Ethernet
1 × 3.5mm Audio
1 × SD Card Slot
1 × microSD / TF Card Slot
DISPLAY OUTPUT

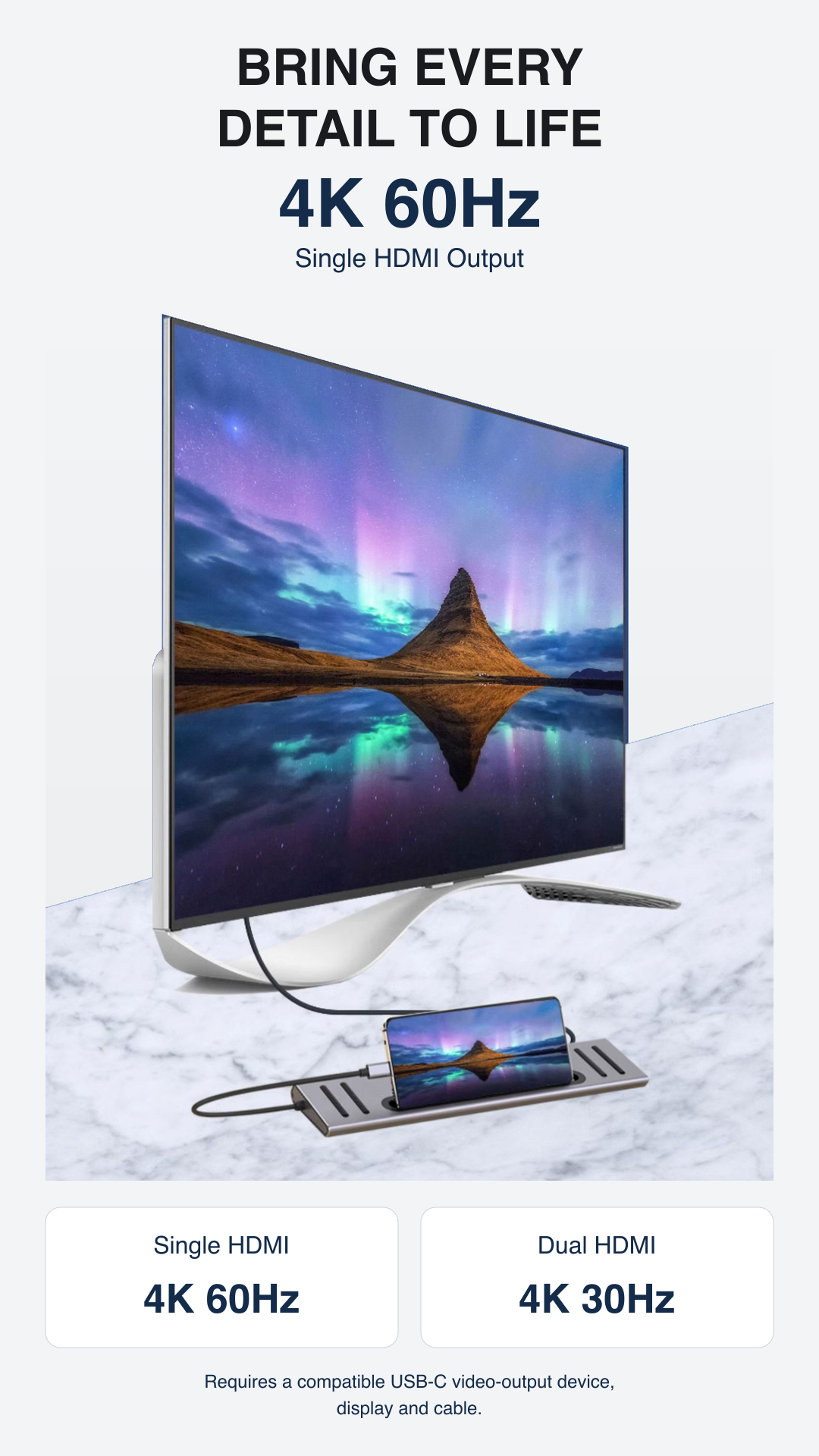

Single HDMI: Up to 4K 60Hz
Dual HDMI: Up to 4K 30Hz
POWER INPUT
USB-C PD 3.0: Up to 100W input
ETHERNET
RJ45: Up to 1000Mbps

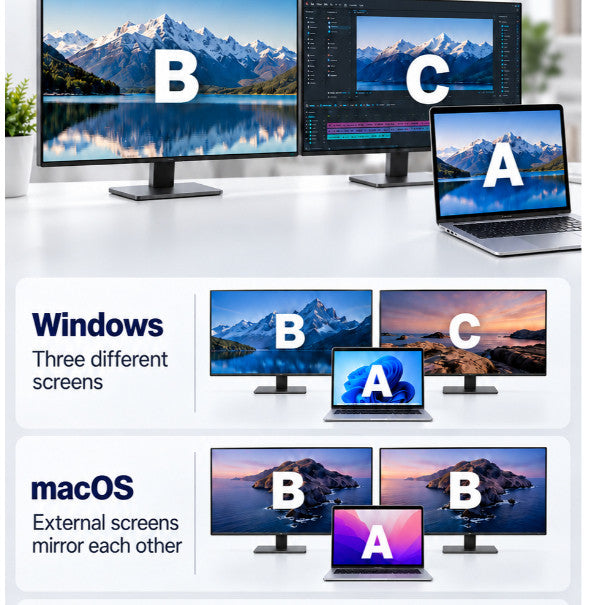

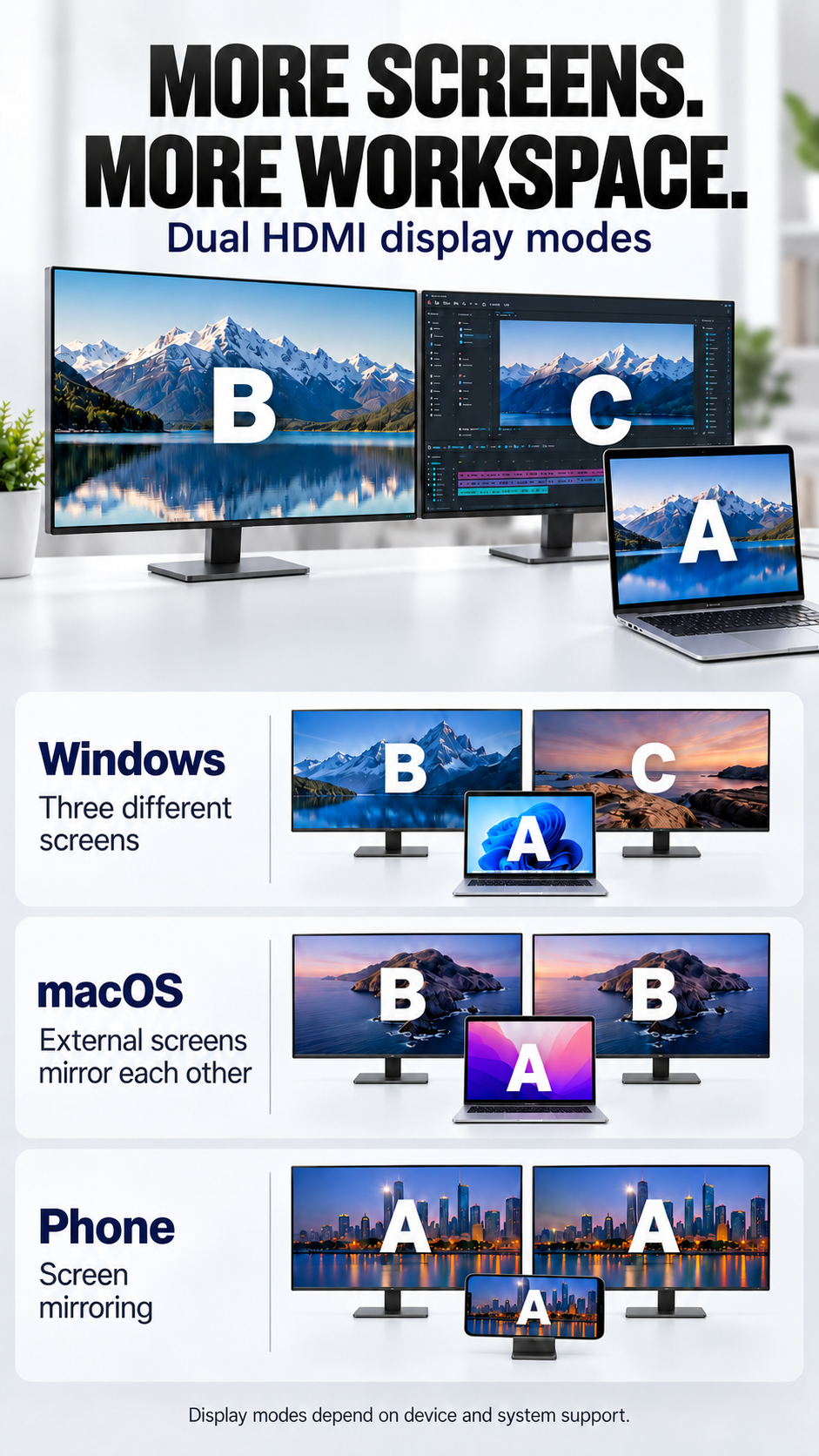

DISPLAY MODES
Windows: A / B / C — different content across the laptop and two external displays on supported devices.
macOS: A / B / B — both external displays show the same content.
Phone: A / A / A — screen mirroring on supported devices.
IMPORTANT NOTES
• Video output requires a USB-C host port that supports video output.
• Not all USB-C devices support every function.
• Resolution and display modes depend on the host device, operating system, displays and cables.
• The USB-C data port and PD power-input port serve different functions.
• 100W refers to maximum PD input, not guaranteed charging power delivered to your device.
• Devices and accessories shown in promotional images are for illustration.
